Off-Road Prowess Done With Style

B30 Dune


Test Drive Brochure
246 KW
POWER
550 NM
TORQUE
1498CC
DISPLACEMENT
2820 MM
WHEELBASE
301 KW
POWER
685 NM
TORQUE
1498CC
DISPLACEMENT
2820 MM
WHEELBASE
b30

B30 DUNE SPECIFICATIONS

DIMENSIONS & CAPACITIES 4x2 4x4
Length 4730mm 4730mm
Width 1910mm 1910mm
Height 1790mm 1790mm
Wheelbase 2820mm 2820mm
Ground Clearance 215mm 215mm
Fuel Tank Capacity 60L 51L
DRIVETRAIN

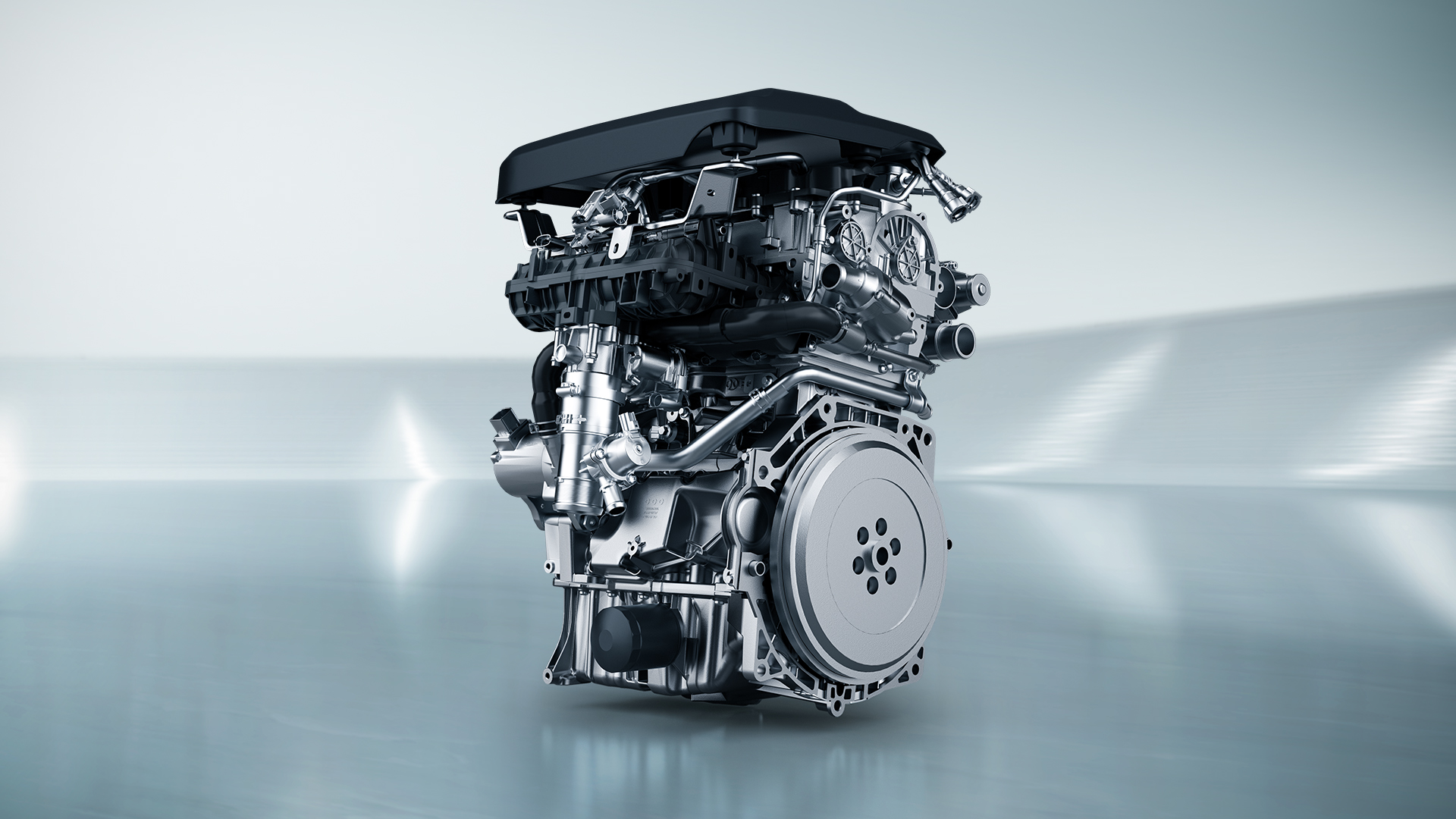

Engine Configuration Single Front Axle Electric Motor with Gasoline Power Generator Dual (Front and Rear Axle) Electric Motor with Gasoline Power Generator
Displacement 1.5L (1498cc) 1.5L (1498cc)
Fuel Type Gasoline Hybrid Gasoline Hybrid
Fuel Injection Direct Injection Direct Injection
Forced Induction Turbocharged (VGT) Turbocharged (VGT)
System wide Max Power 334ps (329hp or 246KW) 409ps (403hp or 301KW)
System wide Max Torque 550Nm 685Nm
Transmission 2-Speed
Dedicated Hybrid Transmission
2-Speed
Dedicated Hybrid Transmission
Drive Modes Comfort, Sport, Economy, Snow Comfort, Sport, Economy, Snow, Sand, Muddy Road, Wading
Launch Mode ● ●
Ignition Type Push Button Push Button
Drive Wheels Front Wheel Drive Real-Time Intelligent All Wheel Drive
CHASSIS & SUSPENSION
Suspension
Front MacPherson Strut MacPherson Strut
Rear Multi-link Multi-link
Brakes
Front Ventilated Disc Ventilated Disc
Rear Solid Disc Solid Disc
Parking Brake Electronic Parking Brake Electronic Parking Brake
Auto Hold ● ●

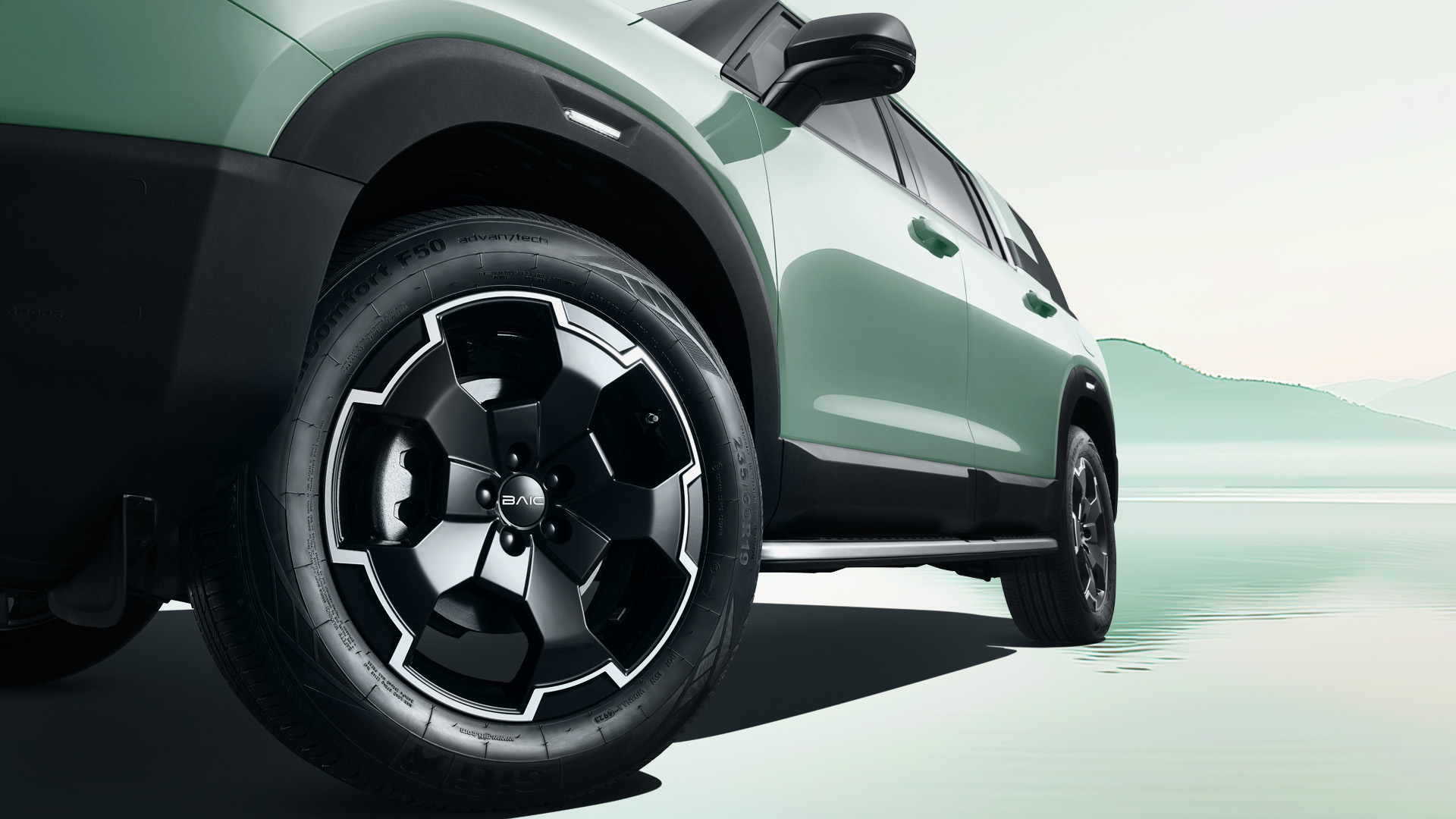

Wheels Two-Tone 19" Aluminum Alloy Two-Tone 19" Aluminum Alloy
Tires 235/60 R19 235/60 R19
Tire Sealer & Inflator ● ●
Steering System Electric Power Steering Electric Power Steering
EXTERIOR

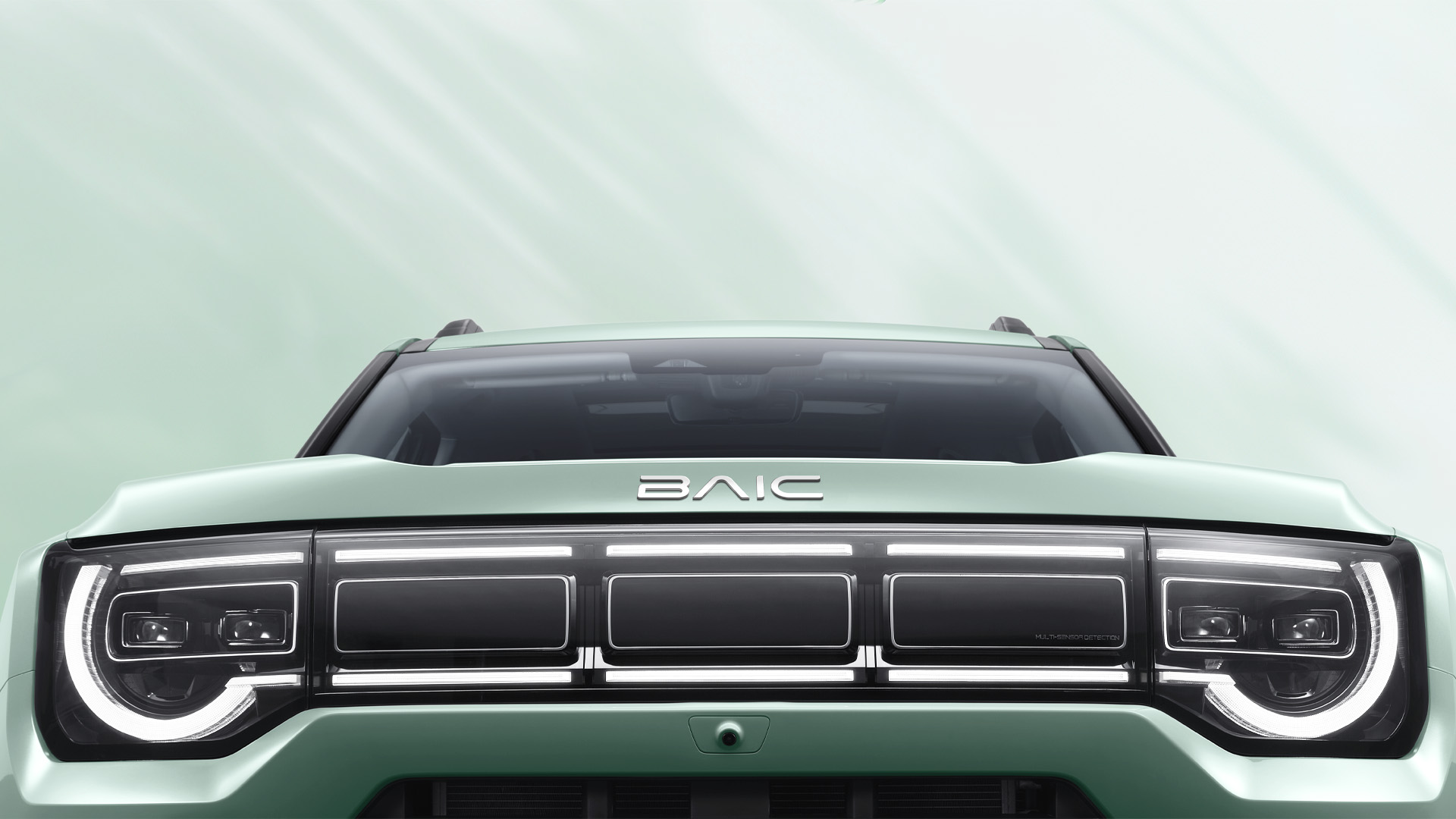

Headlights
Type LED LED
Leveling Electronic Electronic
Control Automatic Automatic
Daytime Running Lights Wraparound Wraparound
Puddle Lights -- ●
Tail Lights LED LED
High Mount Stop Light LED LED
Fog lights
Front -- LED
Rear ● ●
Fender Flare Lights -- LED
Side Mirrors
Finish Gloss Black Gloss Black
Power Adjust ● ●
Power Retract ● ●
Wipers
Front Rain-Sensing Rain-Sensing
Rear ● ●
Skid plate Front Front
Outside Door Handle Body Color Body Color
Wheel Arch Bumper to side trim Bumper to side trim
Stepboard -- ●
Radio Antenna Glass Printed Glass Printed
Roof Rails Silver Silver
Tailgate Power; Intelligent Power; Intelligent
INTERIOR
Instrument Cluster 10.25" LCD 10.25" LCD
Entertainment

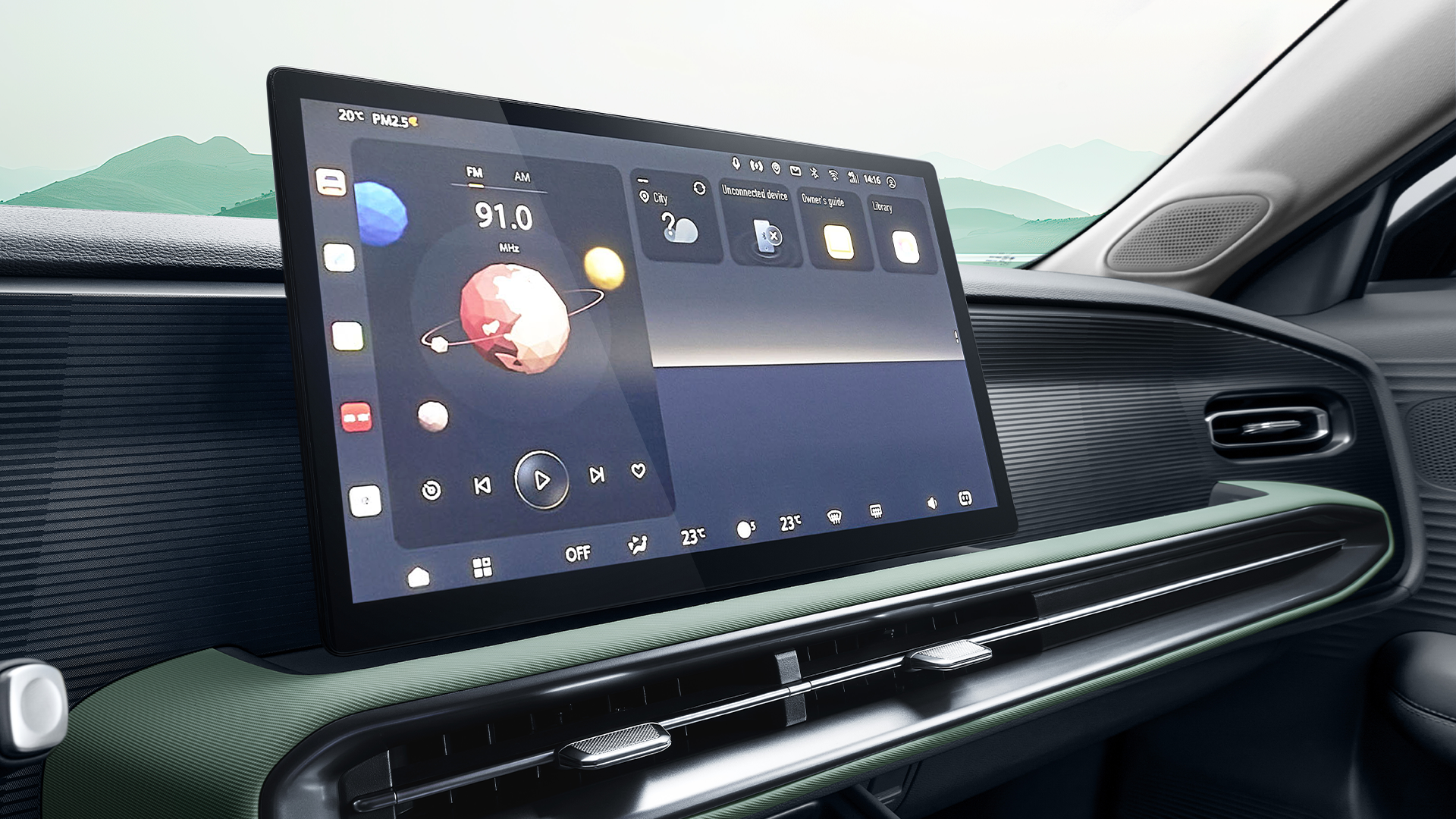

Head Unit 14.6" Floating Infotainment Screen 14.6" Floating Infotainment Screen
Speakers 8 8
Mobile Connectivity USB, Bluetooth, Mirroring USB, Bluetooth, Mirroring
Steering Wheel
Material Leather-Wrapped Leather-Wrapped + Heating Function
Adjustment Tilt & Telescopic Tilt & Telescopic
Multi-function ● ●
Gear Shifter Electronic (Aircraft Style) Electronic (Aircraft Style)

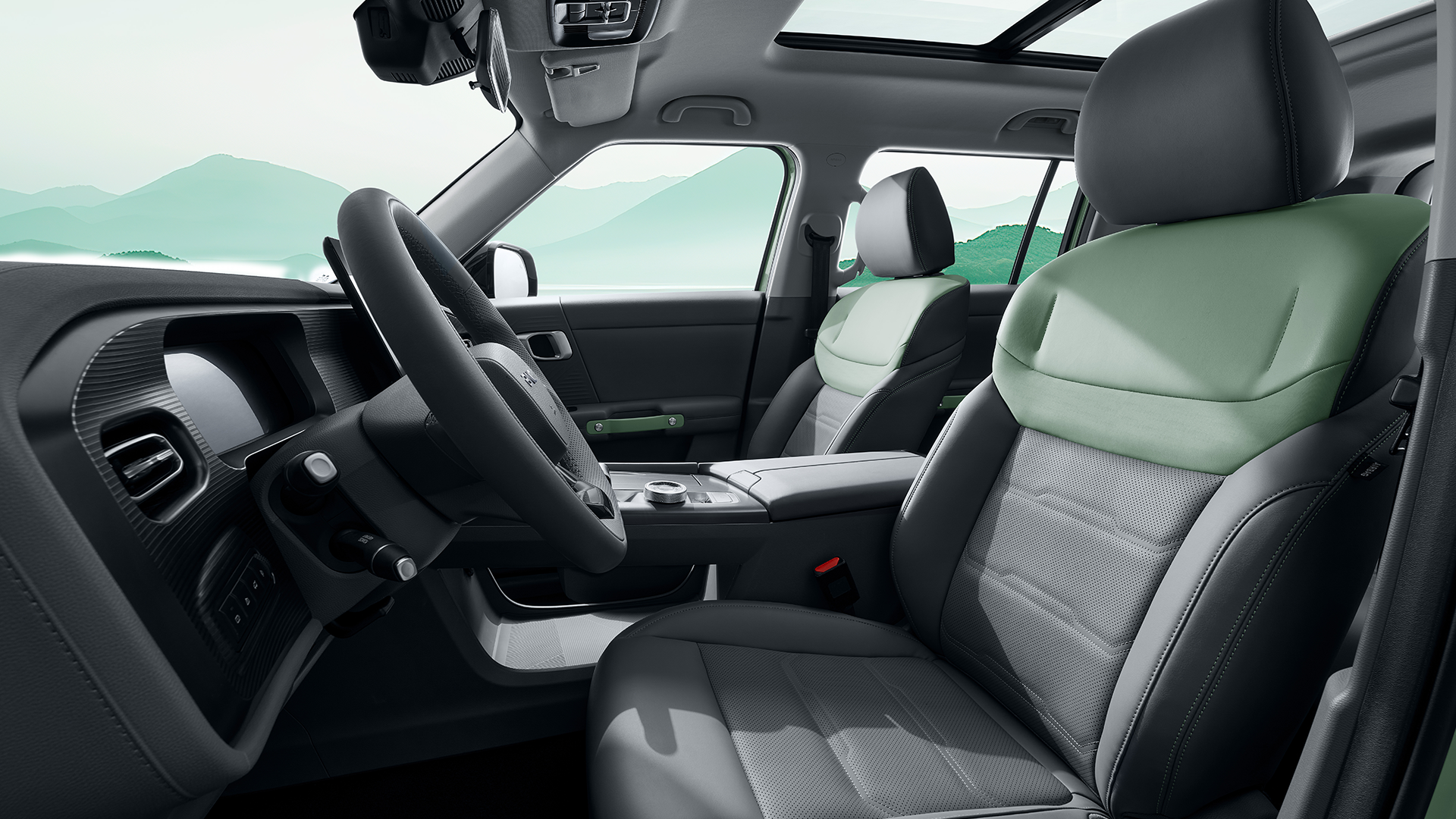

Seats
Material Leather Leather
Driver Seat 6-Way power 6-Way power
Passenger Seat 4-Way Power 4-Way Power

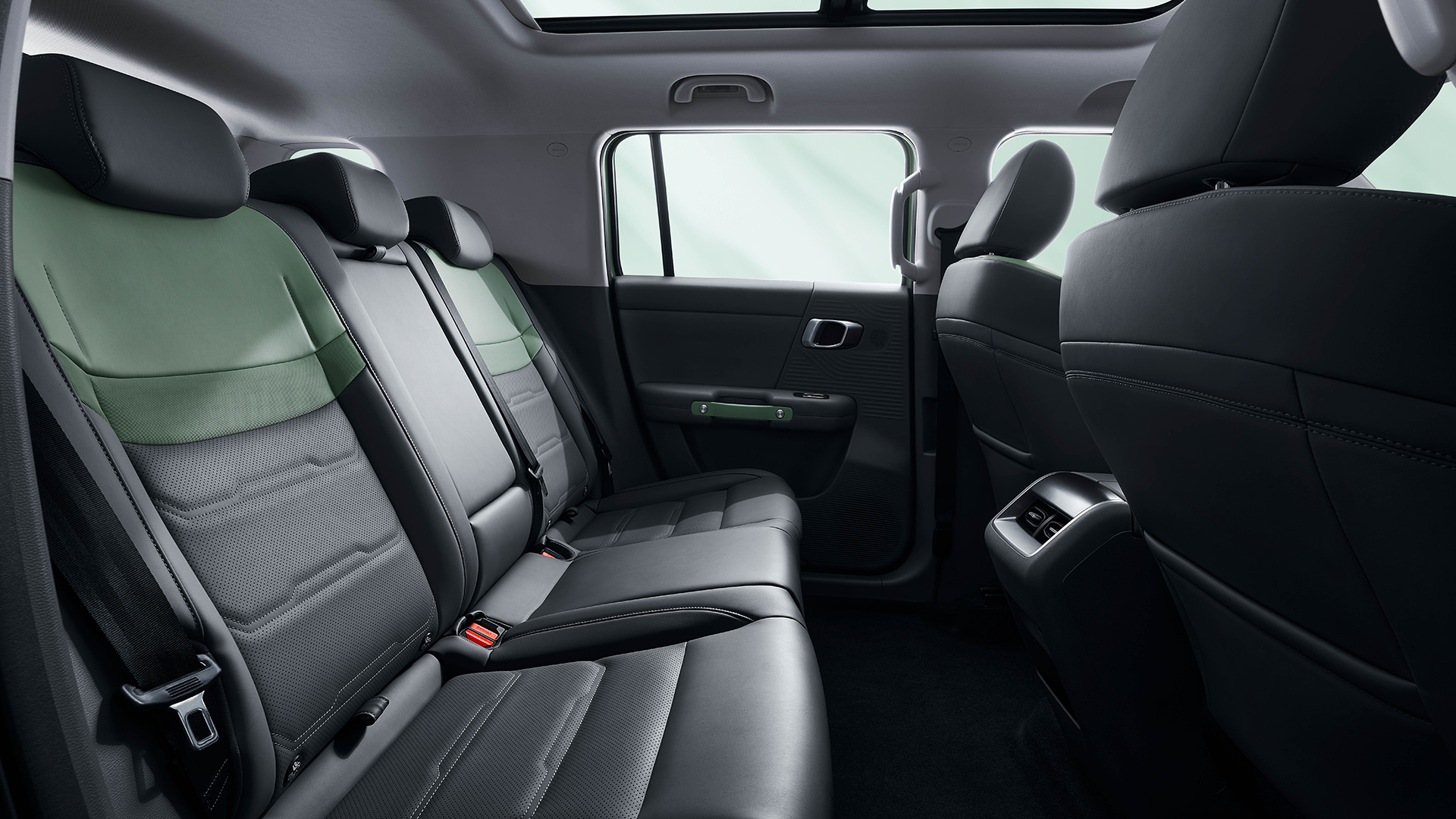

Second Row Seats 60:40 Split with Center Armrest with Cupholders 60:40 Split with Center Armrest with Cupholders
Seat Ventilation -- Front Seats
Seat Heater Front Seats Front Seats
Memory -- Driver Seat
Air Conditioning
Type Dual-Zone Automatic Dual-Zone Automatic
Rear AC Vents ● ●
Rear View Mirror Day & Night Day & Night
Sunroof Panoramic Panoramic
Power Windows All Auto; Anti-Pinch All Auto; Anti-Pinch
Sun visors With Vanity Mirror & Illumination With Vanity Mirror & Illumination
Reading Light
Front Row ● ●
Second Row ● ●
Wireless Phone Charger -- ●
USB Outlet Front Row ● ●
Type C Outlet
Front Row ● ●
Second Row Center Console ● ●
Second Row Center Arm Rest ● ●
12V charging port
Front Row ● ●
Rear ● ●
220V charging port Rear ● ●
Grab handle B pillar -- ● (2)
Trunk camp table ● ●
Trunk door camp light hook ● ●
SAFETY
Anti-Lock Braking System ● ●
Electronic Brake-Force Distribution ● ●
Brake Assist ● ●
Electronic Stability Program ● ●
Traction Control System ● ●
Roll Movement Intervention ● ●
Hill Start Assist ● ●
Hill Descent Control ● ●
Tire Pressure Monitoring System ● ●
Anti-Theft With Immobilizer With Immobilizer

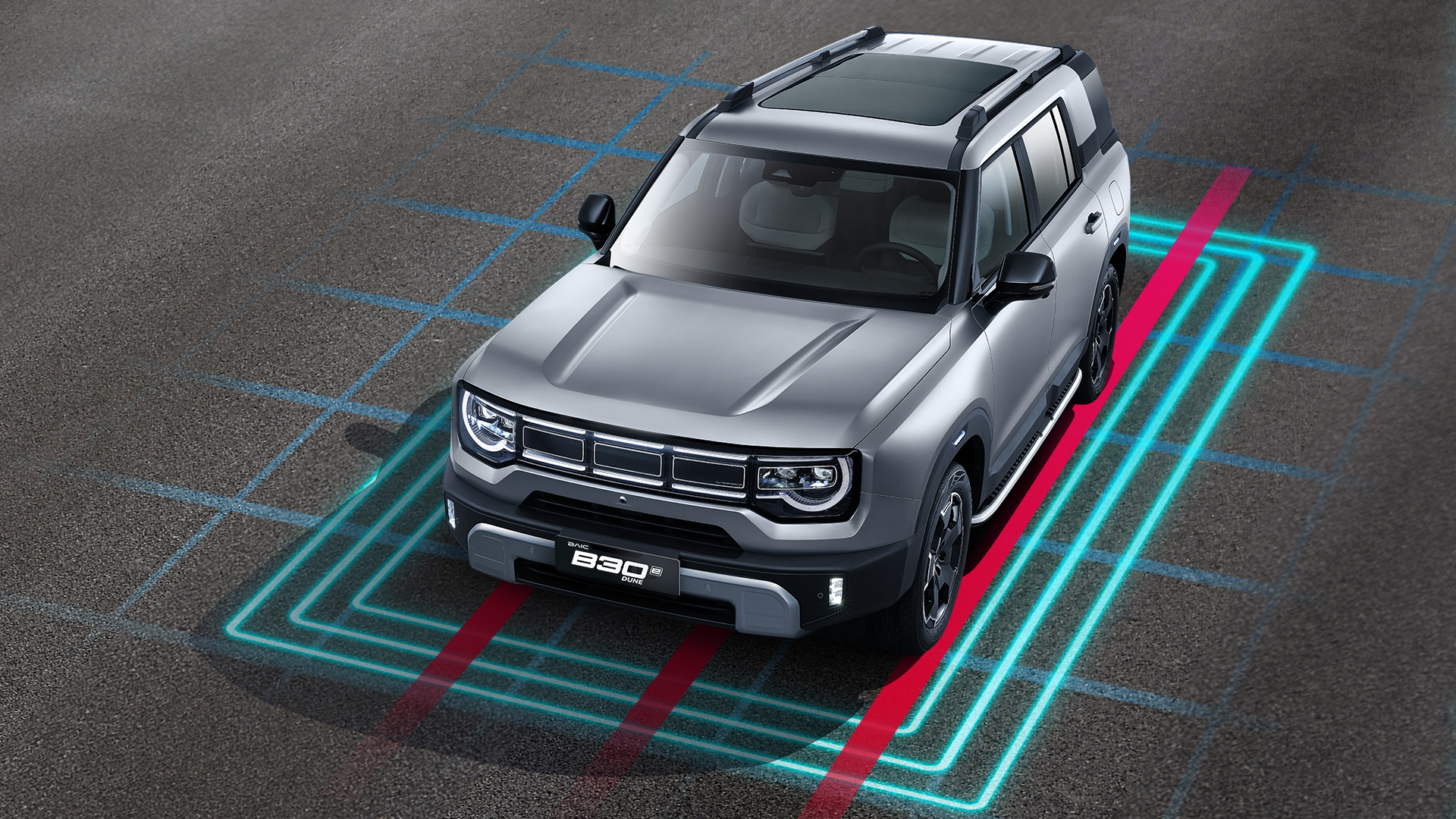

Reverse Camera 360 Degree View 360 Degree View
ISOFIX ● ●
Parking Sensors
Front ● (4) ● (4)
Rear ● (4) ● (4)
Seatbelts Reminder ● ●
Airbags
Driver & Passenger ● ●
Side ● ●
Curtain ● ●
ADVANCED DRIVER ASSISTANCE SYSTEM
Cruise Control Intelligent Adaptive Intelligent Adaptive
Integrated Cruise Assist ● ●
Intelligent High Beam Control ● ●
Blind Spot Monitoring System ● ●
Lane Assist System ● ●
Lane Change Assist ● ●
Emergency Lane Keep Assist ● ●
Forward Collision Warning ● ●
Rear Collision Warning ● ●
Autonomous Emergency Braking ● ●
Rear Cross Travel Warning ● ●
Rear Cross Travel Braking ● ●
Door Opening Warning ● ●
OFF-ROAD SPECS
Approach Angle 24.5� 24.5�
Departure Angle 30� 30�
Ramp Angle 21� 21�
Wading Depth 450mm 450mm
OTHER INFORMATION
Seating Capacity 5 5
Empty Weight (Curb Weight) 1690kg 1770kg
Gross Vehicle Weight 2123kg 2205kg
Body Type Monocoque Monocoque
